The right ATV trailer does more than transport your off-road vehicle. It prevents costly damage, extends your machine’s lifespan, and gives you peace of mind on every trip.
With the average ATV costing between $5,000 and $15,000 and UTVs reaching $25,000 or more, protecting these investments during transport is essential. According to the Australian Competition and Consumer Commission, improper vehicle transport is a leading cause of recreational vehicle damage claims. This guide covers the critical trailer features that keep your ATV, UTV, or quad bike secure from pickup to destination.
General-purpose box trailers and flatbeds lack the specialised design ATVs and UTVs require. Standard trailers often feature smooth floors that cause wheels to shift, generic tie-down points positioned incorrectly for off-road vehicles, and ramps too steep or narrow for safe loading.
The consequences are real. A 2023 survey by the Recreational Vehicle Industry Association found that 34% of ATV owners reported transport-related damage within the first two years of ownership. Common issues include suspension damage from improper loading angles, bodywork scratches from inadequate securing, and tyre wear from constant shifting during transit.
Purpose-built ATV trailers address these problems with features engineered specifically for off-road vehicle dimensions, weight distribution, and securing requirements.
The trailer frame must handle dynamic loads, not just static weight. When towing over rough roads, your ATV exerts forces 2-3 times its resting weight on the trailer structure. Quality ATV trailers use 75mm x 50mm or larger rectangular hollow section (RHS) steel for the main chassis, with cross-members spaced no more than 400mm apart.
Galvanised steel is the standard for Queensland conditions. The hot-dip galvanising process applies a zinc coating of 600g/m² or greater, providing 25+ years of corrosion resistance even in coastal environments. This matters when you’re choosing the best trailer for heavy loads and demanding conditions.
Floor construction determines how well your ATV stays put during transport. Three main options exist:
| Floor Type | Best For | Key Benefit |
| Checker plate aluminium | ATVs, light UTVs | Non-slip surface, lightweight, rust-proof |
| Mesh/expanded metal | Muddy conditions | Self-cleaning, allows water drainage |
| Solid steel plate | Heavy UTVs, multiple machines | Maximum strength, full surface tie-down capability |
Checker plate aluminium provides the best balance for most applications. The raised diamond pattern creates natural grip, while aluminium’s 40% weight reduction compared to steel improves fuel efficiency when improving fuel efficiency while towing.
Effective tie-down systems start with properly positioned anchor points. ATV trailers should include minimum 4 recessed D-rings or equivalent anchors rated to at least 500kg each. Position matters: anchors placed at 45-degree angles to wheel centres provide the strongest hold.
Recessed tie-down points sit flush with the floor surface. This design prevents anchor points from catching on tyres or suspension components during loading, a common problem with bolt-on aftermarket solutions.
Dedicated wheel chocks lock ATV wheels in position without relying solely on straps. Quality systems include:
Wheel chocks reduce strap tension requirements by 60%, meaning less wear on both straps and your ATV’s frame. For those who want additional security, trailer locking systems protect against theft during stops.
Loading ramps must exceed your ATV’s weight by a comfortable margin. The formula: ramp capacity should be at least 150% of your heaviest vehicle’s weight. For a 350kg quad bike, that means ramps rated to 525kg minimum.
Most ATV trailers use bi-fold aluminium ramps ranging from 1.5m to 2.4m in length. Longer ramps create gentler loading angles, reducing ground clearance issues for low-slung UTVs. According to Transport for NSW guidelines, loading angles should not exceed 20 degrees to prevent undercarriage contact.
Ramp surfaces require aggressive grip patterns. Punched or expanded mesh provides the best traction in wet conditions, while solid checker plate works well for dry use. Rubber edge strips prevent metal-to-metal contact with your towing vehicle’s bumper.
Attachment methods include piano hinges (continuous hinge along full width), spring-assisted lift mechanisms, and removable designs with secure storage brackets. Spring-assist systems reduce the lifting effort from approximately 15kg to under 5kg, a significant difference when loading multiple times daily.
Axle configuration depends on total trailer and cargo weight. Single-axle trailers handle gross trailer masses (GTM) up to 750kg efficiently. For single axle vs dual axle considerations, dual-axle setups become necessary above this threshold.
Single-axle benefits:
Dual-axle benefits:
For heavy-duty applications, the Dual Axle UTV/ATV Trailer with 2800kg ATM handles multiple machines or large side-by-sides with ease, featuring electric brakes, heavy-duty ramps, and a reinforced steel frame built for Queensland conditions.
Leaf spring suspension remains the standard for ATV trailers due to its durability and low maintenance. Rocker roller or independent suspension options provide smoother rides for valuable cargo but add complexity and cost.
For trailers exceeding 750kg GTM, electric brakes become mandatory under Queensland transport regulations. Electric braking systems proportionally apply trailer brakes in response to towing vehicle braking, reducing stopping distances by up to 40%.
Queensland’s climate demands specific material choices. The state receives average UV radiation levels 30% higher than southern Australia, causing rapid degradation of unprotected plastics and paint.
Look for:
Unsealed roads generate substantial dust and debris during transport. Features that protect your ATV include:
For maximum protection, consider how enclosed trailers benefit travel and work applications. Enclosed designs eliminate exposure to road debris entirely, though they increase weight and cost.

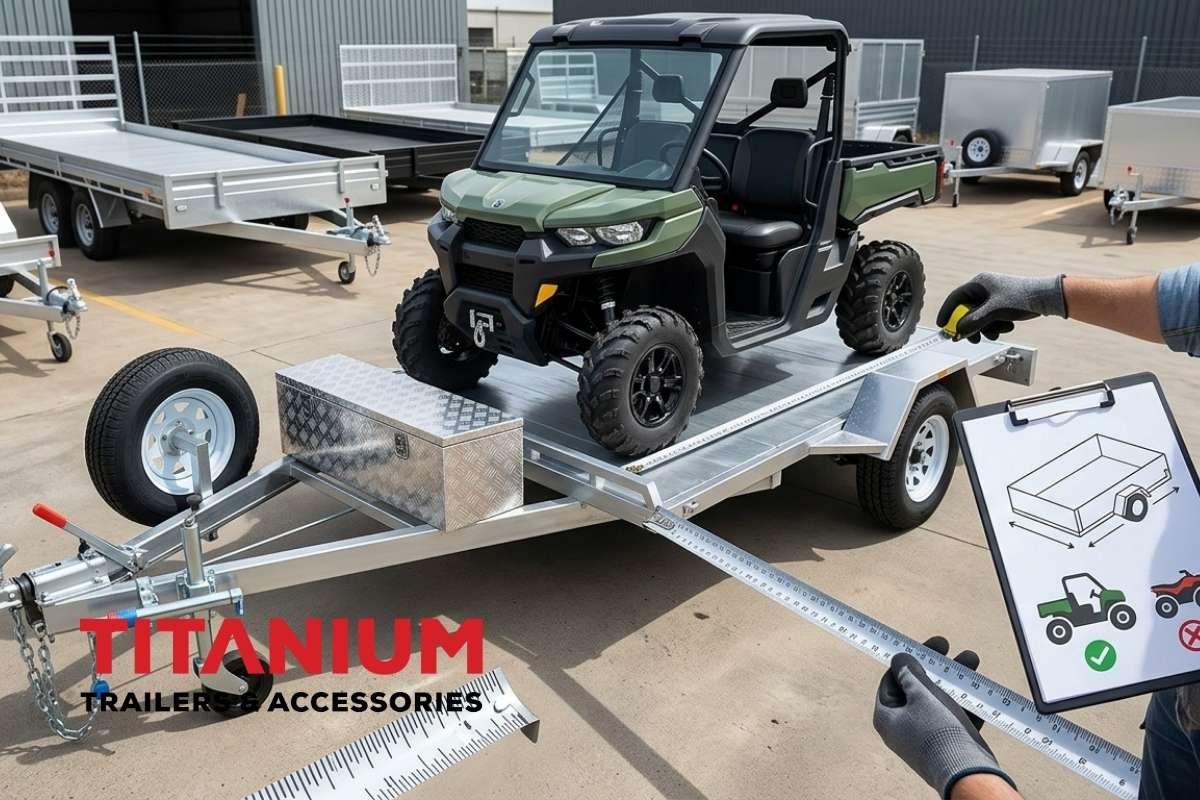

Accurate measurements prevent costly mistakes. Record these dimensions:
Add 150mm minimum clearance to length and width measurements for tie-down access. For multiple vehicles, measure each and calculate total deck space required.
| Trailer Size | Suits | Typical Capacity |
| 1800mm x 1200mm | 1 small ATV | Up to 350kg |
| 2400mm x 1500mm | 1 large ATV or UTV | Up to 500kg |
| 3000mm x 1800mm | 2 ATVs or 1 large UTV | Up to 750kg |
| 3600mm x 2100mm | 2 UTVs or 3+ ATVs | Up to 1200kg |
Browse ATV trailer options to compare available sizes and configurations.
ATVs require accompanying gear: helmets, tools, fuel, spare parts. Integrated storage prevents loose items from damaging your vehicle during transport.
Toolboxes for trailers mount to the drawbar or front of the deck, keeping tools secure and accessible. Look for weatherproof designs with gas struts for easy lid operation.
Jerry can holders provide safe fuel storage away from hot exhaust components. Mounting brackets should position cans upright with secure latching to prevent spills.
Legal compliance requires functional rear lights, reflectors, and number plate illumination. Quality ATV trailers include:
LED upgrades outlast incandescent bulbs by 25,000+ hours, eliminating frequent replacements.
Regular maintenance extends trailer life and protects your investment. Key tasks include:
Monthly:
Quarterly:
Annually:
These practices align with essential maintenance tips for trailer owners andmaximising trailer lifespan.
What size trailer do I need for a side-by-side UTV? Most side-by-side UTVs require minimum trailer dimensions of 2400mm x 1500mm. Larger 4-seater models need 3000mm x 1800mm or greater. Always measure your specific vehicle and add 150mm clearance on all sides for safe loading and tie-down access.
Can I use a car trailer for my ATV? Yes, car trailers can transport ATVs if they include appropriate tie-down points and loading ramps. However, car trailers are often wider than necessary, and their tie-down positions may not align with ATV anchor points, requiring additional securing effort.
What weight capacity should my ATV trailer have? Your trailer’s Gross Trailer Mass (GTM) rating should exceed your ATV’s weight by at least 50%. For a 400kg quad bike, select a trailer rated to 600kg GTM minimum. This accounts for additional gear, fuel, and dynamic loading forces during transport.
Do ATV trailers require registration in Queensland? Trailers with a GTM exceeding 750kg require registration and annual inspection in Queensland. Trailers under this threshold may operate unregistered when towed by registered vehicles but must still comply with lighting, braking, and safety chain requirements.
How do I prevent my ATV from shifting during transport? Use a combination of front wheel chocks and ratchet straps attached at 45-degree angles to the frame. Apply straps to the ATV’s frame or designated tie-down points, never to handlebars, racks, or plastic components. Straps should be tight enough to compress suspension slightly.
What ramp angle is safe for loading ATVs? Loading ramps should create an angle no steeper than 20 degrees from horizontal. For most trailers with deck heights of 400-500mm, this requires ramps at least 1.8m long. Low ground clearance vehicles may need longer ramps or steeper loading approaches with running starts.
Should I choose aluminium or steel floor construction? Aluminium checker plate suits most ATV applications, offering non-slip grip, corrosion resistance, and 40% weight savings over steel. Choose steel mesh or plate flooring for very heavy UTVs, commercial operations involving multiple daily loads, or when budget is the primary concern.
How do I protect my ATV trailer from theft? Install a hitch lock on the coupling when parked, use wheel clamps on trailer tyres, and consider a lockable enclosed design. For trailer security options, combining multiple methods provides the best protection against opportunistic theft.
Protecting your off-road investment starts with the right trailer. For owners of larger UTVs or those transporting multiple machines, the Dual Axle UTV/ATV Trailer (2800kg ATM) delivers the capacity and durability serious riders demand. Visit Titanium Trailers showrooms in Townsville, Rockhampton, Brisbane, or Cairns to see ATV trailer options in person. Need specific dimensions or features? Request a custom trailer quote and get a build designed for your exact requirements.
